Lorry Workshop Pits.
Precast concrete vehicle inspection pits and workshop pits. Built in C40/50 reinforced concrete with cast-in side recesses for cables, airlines and lighting. HSE guidance on pit safety is in HSG261 — worth reading before you build. Sized for light commercial, HGV or PSV. HSE-compliant detail drawings included; please call to check current yard stock or current lead times.
One fixed cross-section. Cast in Devon. Delivered ready to drop in.
How big is a vehicle inspection pit?
How big is a vehicle inspection pit? Every WCCP pit is cast with a fixed 1500 × 1100 mm (4'11" × 3'7") cross-section and a negative tread floor. You choose the length — standard lengths run from 3048 mm (10ft) up to 17196 mm (56'5").
Pit weights run from 5,300 kg (11,685 lb) at the shortest standard length to 30,000 kg (66,139 lb) at the longest. Side recesses cast-in for cables, airlines and lighting. Cast-in galvanised steel steps optional.
- · 1500 × 1100mm fixed cross-section
- · 3,048mm–17,196mm lengths
- · Side service recesses
- · Galv steel steps option
- · Delivered to site
- · Far cheaper than steel
Specification
Dimensions, lengths and weights.
One fixed 1500 × 1100mm cross-section, supplied at a standard length of your choice. Bespoke widths and depths cast on application.
| Specification | Value |
|---|---|
| Cross-section (fixed) | 1500 × 1100mm (4ft11in × 3ft7in) — every pit length, negative tread floor |
| Length range | 3048mm (10ft) to 17196mm (56ft5in) — see the full length table below |
| Side recesses | Cast in for cables, airlines and lighting — keeps services flush |
| End walls | Galvanised steel steps to one end — bolted on site per our installation guide |
| Lifting points | Cast-in eyes on every main section |
| Site handling | Delivered to site — sections lifted into the prepared excavation by the installing contractor |
Standard lengths and weights.
| Length | Weight |
|---|---|
| 3048 mm (10ft0in) | 5,300 kg (11,685 lb) |
| 3700 mm (12ft2in) | 6,500 kg (14,330 lb) |
| 6096 mm (20ft0in) | 10,700 kg (23,589 lb) |
| 6748 mm (22ft2in) | 11,800 kg (26,015 lb) |
| 7400 mm (24ft3in) | 12,900 kg (28,440 lb) |
| 9144 mm (30ft0in) | 16,000 kg (35,274 lb) |
| 9796 mm (32ft2in) | 17,100 kg (37,699 lb) |
| 10448 mm (34ft3in) | 18,250 kg (40,234 lb) |
| 11100 mm (36ft5in) | 19,400 kg (42,770 lb) |
| 12192 mm (40ft0in) | 21,300 kg (46,958 lb) |
| 12844 mm (42ft2in) | 22,400 kg (49,383 lb) |
| 13496 mm (44ft3in) | 23,550 kg (51,919 lb) |
| 14148 mm (46ft5in) | 24,700 kg (54,454 lb) |
| 14800 mm (48ft7in) | 25,800 kg (56,879 lb) |
| 15240 mm (50ft0in) | 26,600 kg (58,643 lb) |
| 15892 mm (52ft2in) | 27,700 kg (61,068 lb) |
| 16544 mm (54ft3in) | 28,850 kg (63,603 lb) |
| 17196 mm (56ft5in) | 30,000 kg (66,139 lb) |
All lengths share the fixed 1500 × 1100mm (4ft11in × 3ft7in) cross-section above.
On-farm + workshop

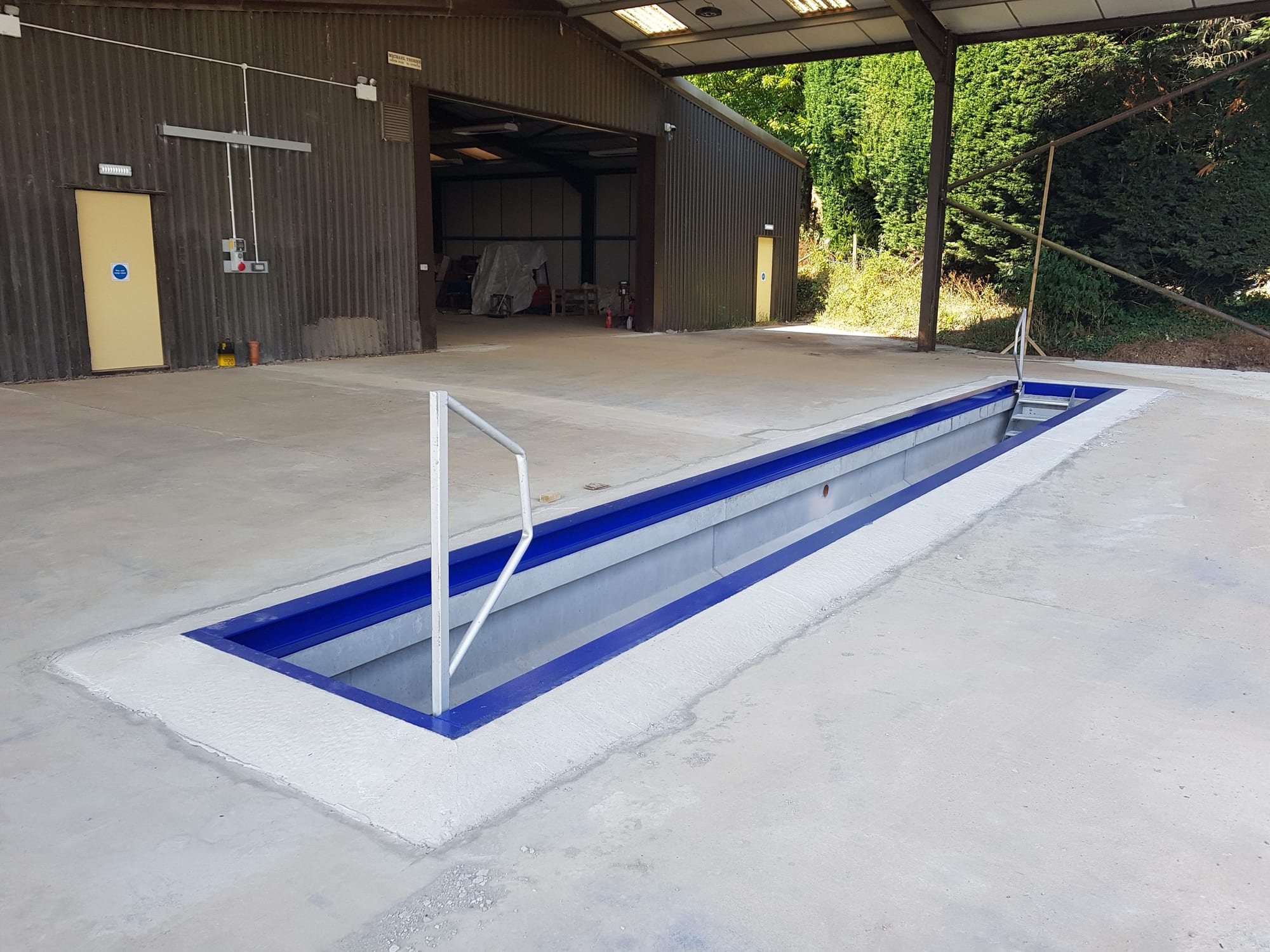

Inspection pits in service.
Why precast
Faster, cheaper, ready for service.
From a single MOT bay at a village garage to a four-pit HGV workshop — same precast section family, scaled to length.
- ·Fixed 1500 × 1100mm (4ft11in × 3ft7in) cross-section on every pit, whatever the length
- ·Standard lengths from 3,048mm/5,300kg up to 17,196mm/30,000kg
- ·Side recesses cast in for cables, airlines and lighting — services run flush

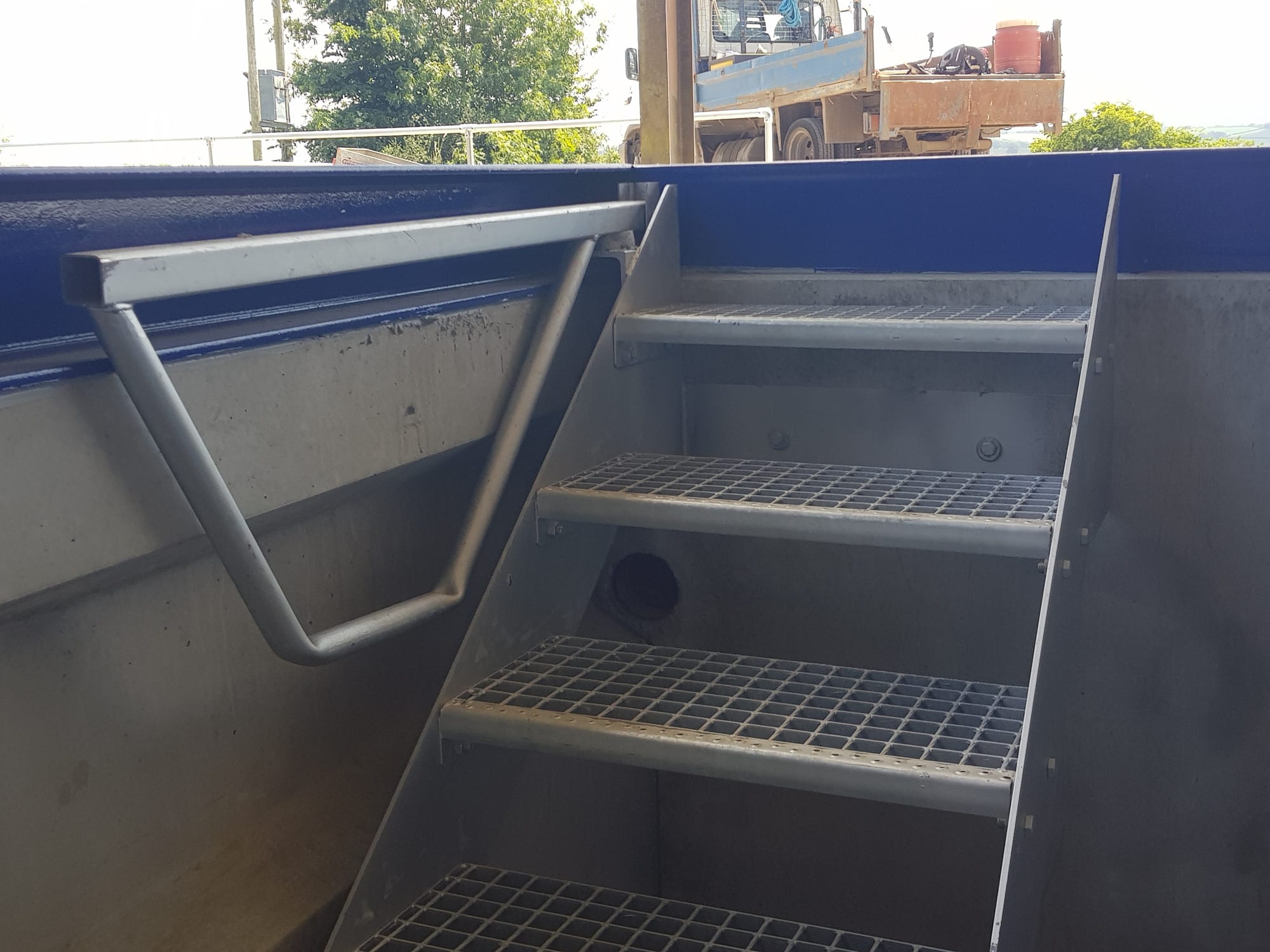

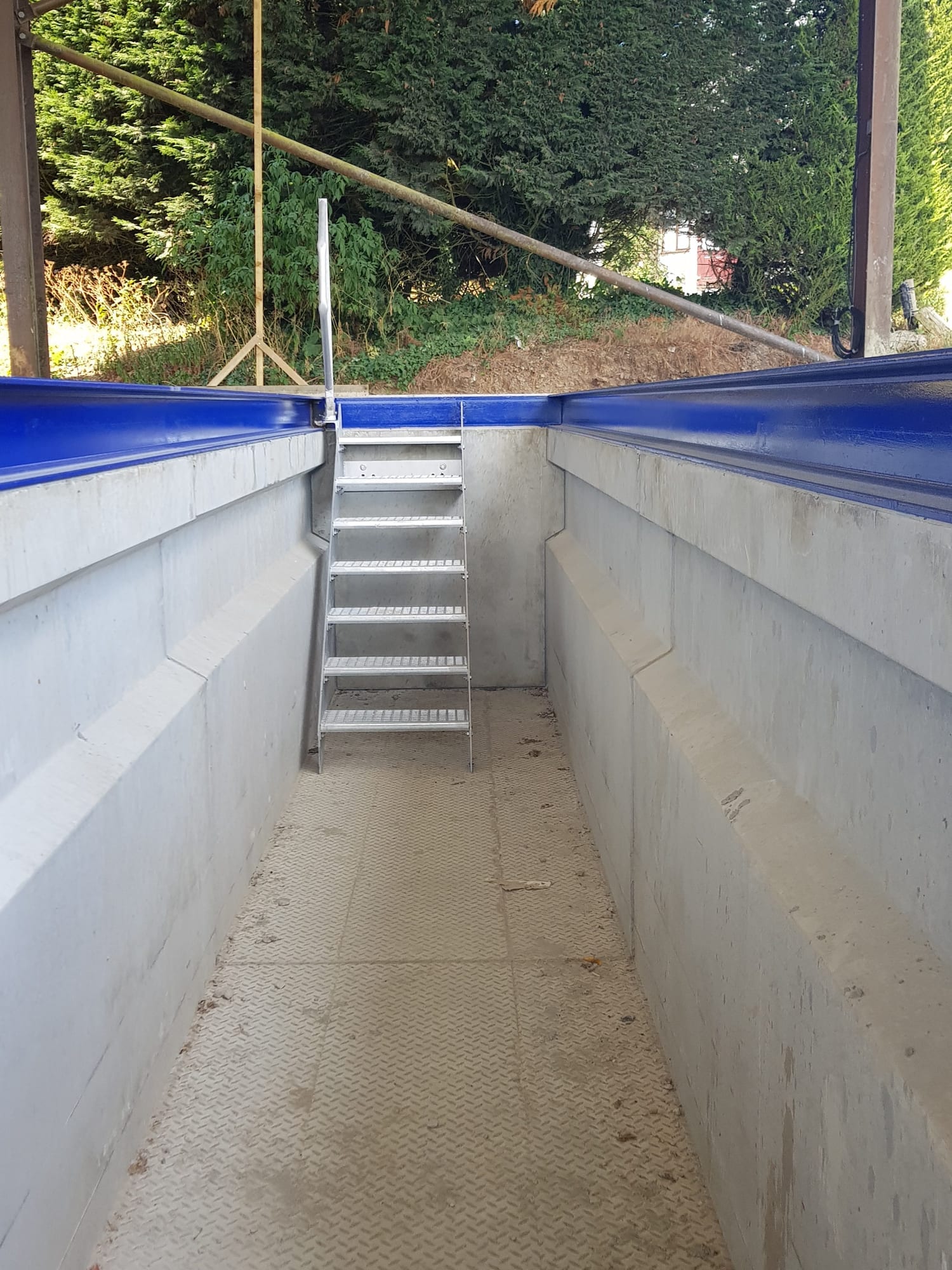

- ·Cast-in galvanised steel steps to one end available

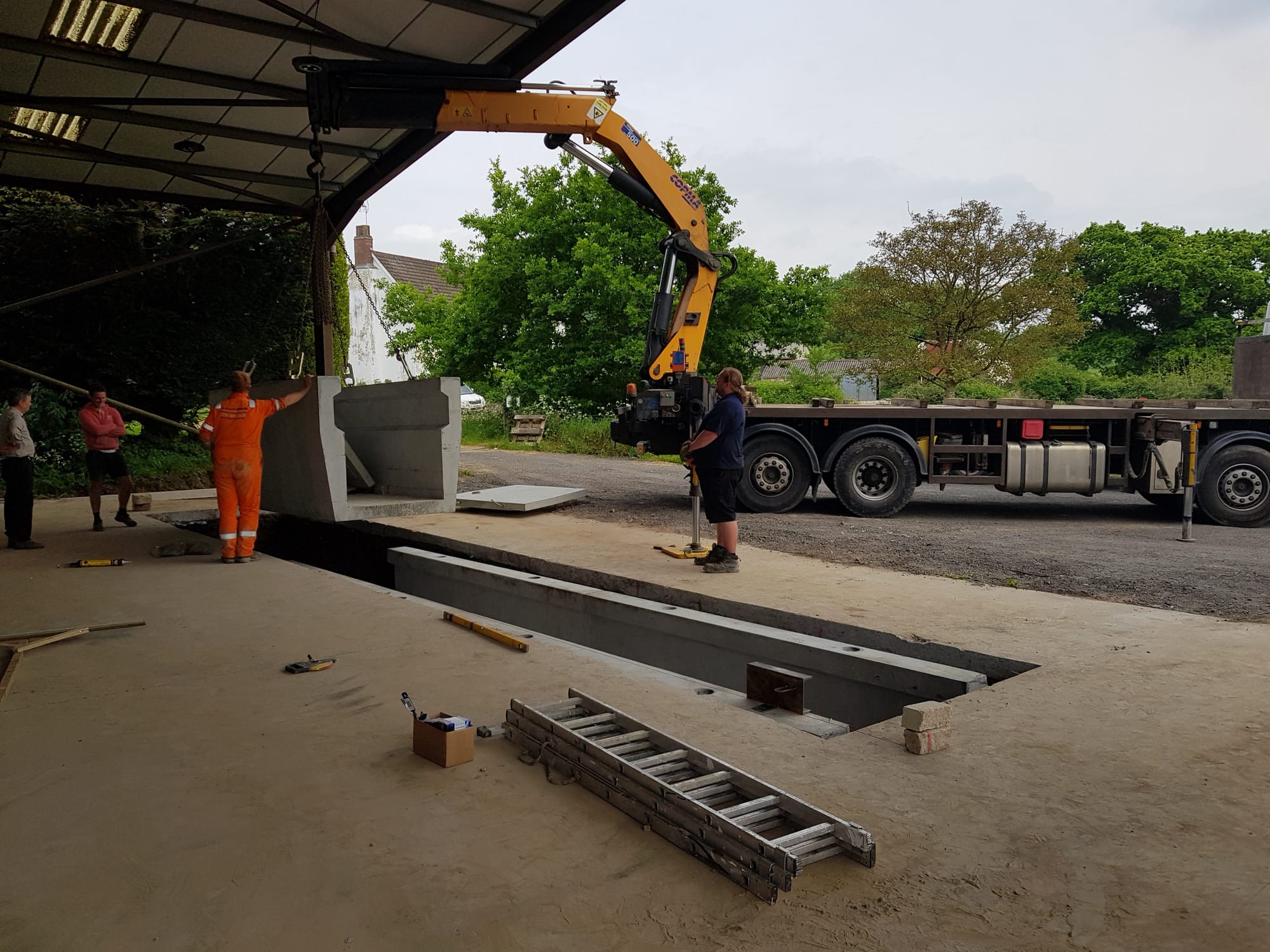

- ·Delivered to site — sections drop straight into the prepared excavation
- ·Quick to install — the sections drop in, level up and grout

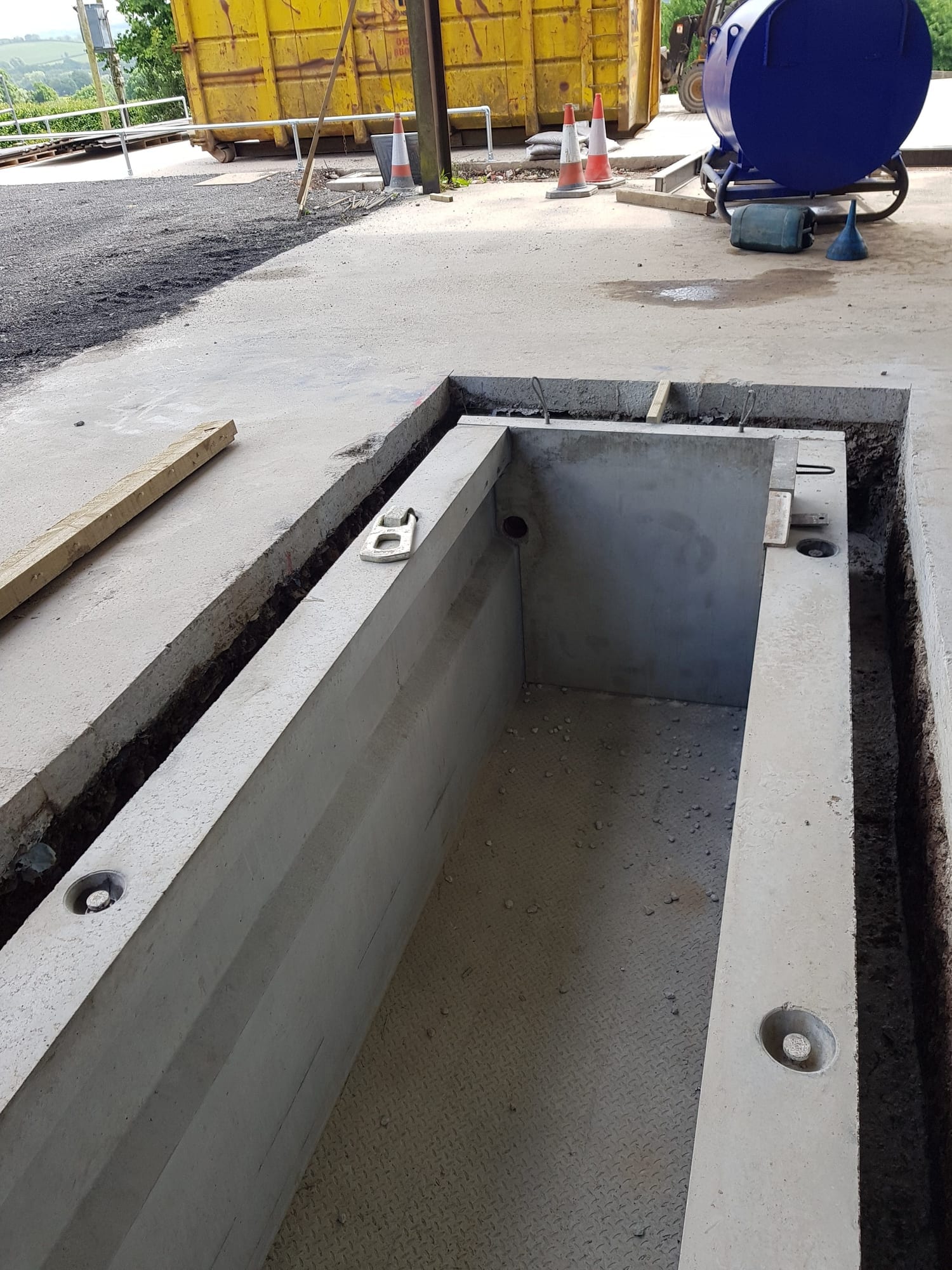

- ·Cast-in lifting eyes on every section
Where they go
Common applications.
- ·Lorry workshop pits and HGV servicing bays
- ·Agricultural-engineer servicing pits
- ·Commercial vehicle workshop and inspection bays
- ·MOT class VII (3.5–7.5t goods vehicles) bays
- ·Bus and coach maintenance depots
- ·Plant and earthmoving equipment workshops
- ·Local authority fleet maintenance pits
Configure your inspection pit
Send workshop length, vehicle type and any sleeves required — we will quote it.
Related products
Often ordered alongside.
Ready to specify it?
Send the workshop drawing and the vehicle types. We will come back with a quote and a lead time.
