Agricultural · feeding · cattle
Feed Troughs.
Cast as one piece. No joints to clean, no joints to fail.
What are precast concrete feed troughs?
Reinforced precast concrete feed troughs in lengths to 3.66 m (12ft), cast in C40/50 to BS 8500-1:2023 with cast-in lifting eyes. Smooth-curved 'J' Trough, Quad Run, Double / Single Sided, 'L' Shaped, Feedstop and Round Top variants — suit dairy parlours, beef sheds and youngstock pens. Catalogue lead time 2–3 weeks; bespoke run-lengths and notch-outs to spec.
The full WCCP range — 'J' Trough, Quad Run, Double / Single Sided, 'L' Shaped, Feedstop Walls and Round Top Feed Walls up to 21'. Every section cast with lifting eyes.
- · 'J' Trough 3658×1150 (12ft×3'9")
- · Quad Run 1,898kg
- · Rapid fit rail system
- · Adjustable headrail
- · Round Top to 21' (6400mm)
- · 2–3 week lead
Specification
Variants, sizes and weights.
The full range from the November 2021 brochure. Cast-in lifting eyes throughout; custom lengths and notch-outs cast on application.
| Type | Size (L×W×H) | Weight | Notes |
|---|---|---|---|

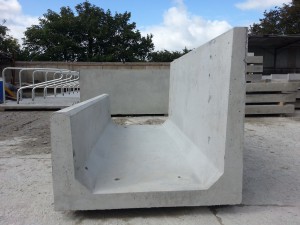

| 'J' Single Sided (12ft) | 3658 × 1150 × 600/800mm (12ft × 3'9" × 2ft/2'7") | 1,740 kg | Smooth curved internal surface; notch-outs around steel stanchions |

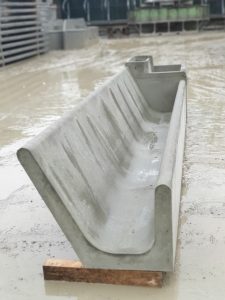

| Youngstock 'J' Single Sided (12ft) | 3658 × 800 × 500/700mm (12ft × 2'7" × 1'8"/2'4") | 1,321 kg | Narrower flat base, lower front wall — for youngstock |
| Single Sided (8ft) | 2440 × 1180 × 610/1100mm (8ft × 3'10" × 2ft/3'7") | 1,822 kg | Wall or partition; adjustable headrail; suits all cattle |

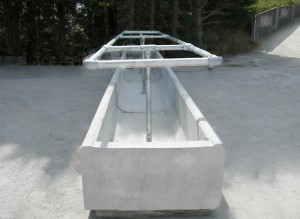

| Double Sided (8ft) | 2440 × 1180 × 610mm (8ft × 3'10" × 2ft) | 1,600 kg | Two-sided feed passage through the shed or yard |

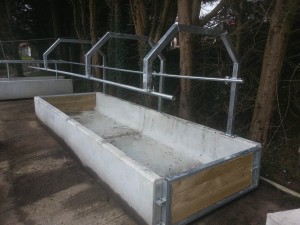

| Quad Run (8ft) | 2440 × 1760 × 600mm (8ft × 5'9" × 2ft) | 1,885 kg | Sized for quad-bike + scraper cleaning; one-sided feed arms |
| Youngstock Compact (8ft) | 2440 × 720 × 520/830mm (8ft × 2'4" × 1'8"/2'9") | 1,102 kg | Compact youngstock variant |

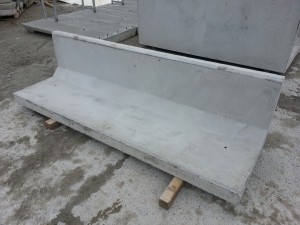

| 'L' Shape Feed Wall (8ft) | 2440 × 900 × 610mm (8ft × 2'11" × 2ft) | 925 kg | Use against an existing wall to lift feed off the ground |
| Half Round Top Feed Wall (21ft) | 6400 × 127 × 500 or 600mm (21ft × 5in × 1'8" or 2ft) | 812 kg @ 500mm · 1,142 kg @ 600mm | Cow-friendly barrier; up to 21' lengths |

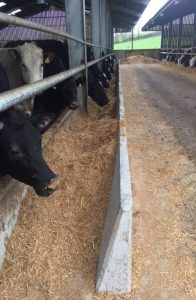

| 'Flick Stop' / Feed Stop Wall | 3000 × 275/75 (tapered) × 600mm (9'10" × 11in/3in tapered × 2ft) | 685 kg | Freestanding with integrated fork slots; tapered for stability |
The range
Every trough we cast.
Built-in features
What you get out of the box.
Every WCCP feed-trough variant is engineered for fast install, easy cleaning and easy re-positioning where the layout calls for it.
- ·Cast-in lifting eyes on every section for safe HIAB / teleporter handling
- ·Smooth curved internal surface on the 'J' Trough — easy to clean, no feed traps
- ·600mm round top front feed wall on the Round Top range
- ·Custom lengths and notch-outs available — give us the drawing
- ·Rapid fit rail system on the Double Sided variant
- ·Adjustable headrail on the Single Sided and Quad Run
- ·Gated ends on the Quad Run for easy access during cleaning
- ·Cast-in fork slots on the Feedstop Walls — re-position with the loader
- ·Lifting eyes on the Round Top for steel-post panel brackets
Where they go
Common applications.
- ·Cubicle-housed dairy parlour feed passages
- ·Loose-housed beef and youngstock pens
- ·TMR (total mixed ration) feed-out systems
- ·Calf-rearing and creep-feeding pens
- ·Self-locking yoke barriers for AI and treatment
- ·Outdoor wintering pads with covered feed face
- ·Sheep handling and feed yards
Configure your feed run
Send passage length, breed and feed system — we will quote inside 24 hours.
Related products
Often ordered alongside.
Common questions
What people ask about feed troughs.
Five questions we answer most weeks. If yours is not here, ring the yard.
What's the difference between the 'J' Trough and the Youngstock 'J'? +
The full 'J' Trough is 3658 × 1150 × 800mm (12ft × 3'9" × 2'7") at 1,740kg with a smooth curved internal surface for easy cleaning. The Youngstock 'J' is the same length but narrower and lower at 3658 × 800 × 700mm (12ft × 2'7" × 2'4") and 1,321kg — sized for youngstock pens.
How do the lifting eyes work? +
Every trough section is cast with lifting eyes for safe handling on the HIAB or teleporter. Sections come in calibrated lengths so they line up — bespoke lengths and notch-outs are available where the drawing calls for it.
Tell me about the Quad Run and the Double Sided. +
The Quad Run (2440 × 1760 × 600mm, 8ft × 5'9" × 2ft, 1,898kg) is the largest trough with an adjustable headrail and gated ends. The Double Sided (2440 × 1180 × 600mm, 8ft × 3'10" × 2ft, 1,476kg) uses our rapid fit rail system for fast assembly on centre-passage two-sided runs.
What are the Feedstop Walls and Round Top Feed Walls? +
Feedstop Walls (3000 × 250 × 600mm, 9'10" × 10in × 2ft, 684kg) have cast-in fork slots so you can re-position them with the loader. The Round Top Feed Walls run up to 21' (6401mm), 500 or 600mm (1'8" or 2ft) tall, 130mm (5in) thick reinforced concrete. The 600mm round top is the front feed face. They have lifting eyes for steel-post panel brackets.
Lead time? +
Catalogue sizes ship in 2 to 3 weeks. Bespoke lengths or non-standard notch-outs run 4 to 6 weeks. Most farms want them in for the autumn housing — order by August.
Spec sheets
Download the technical data.
Every feed-trough section we cast — pick the variant for your feed passage and download the PDF.
How would you like it?
Supply-only or fitted — Feed Troughs
Supply only
Per-unit / per-metre supply
Lead time: 2–3 weeks
- 'J', Quad Run, Double Sided, Single Sided, 'L' Shaped, Half Round or Feedstop sections
- Cast-in lifting eyes on every section
- BS EN 13369 / BS 5502-22 documentation
- Delivery on our HIAB to your shed
- On-site setting and bedding mortar
- Slab preparation and resin anchors
- Custom notch-outs (priced separately)
Send us the feed-passage length, herd type and any notch-outs needed around steel stanchions — we'll quote inside a working day. Install handled by our partner ag-fit-out crews — ask for a referral.
