Agricultural · cattle · drinking water
Drinking Troughs.
Cast in one piece. Built for fifty winters.
What are precast concrete water troughs?

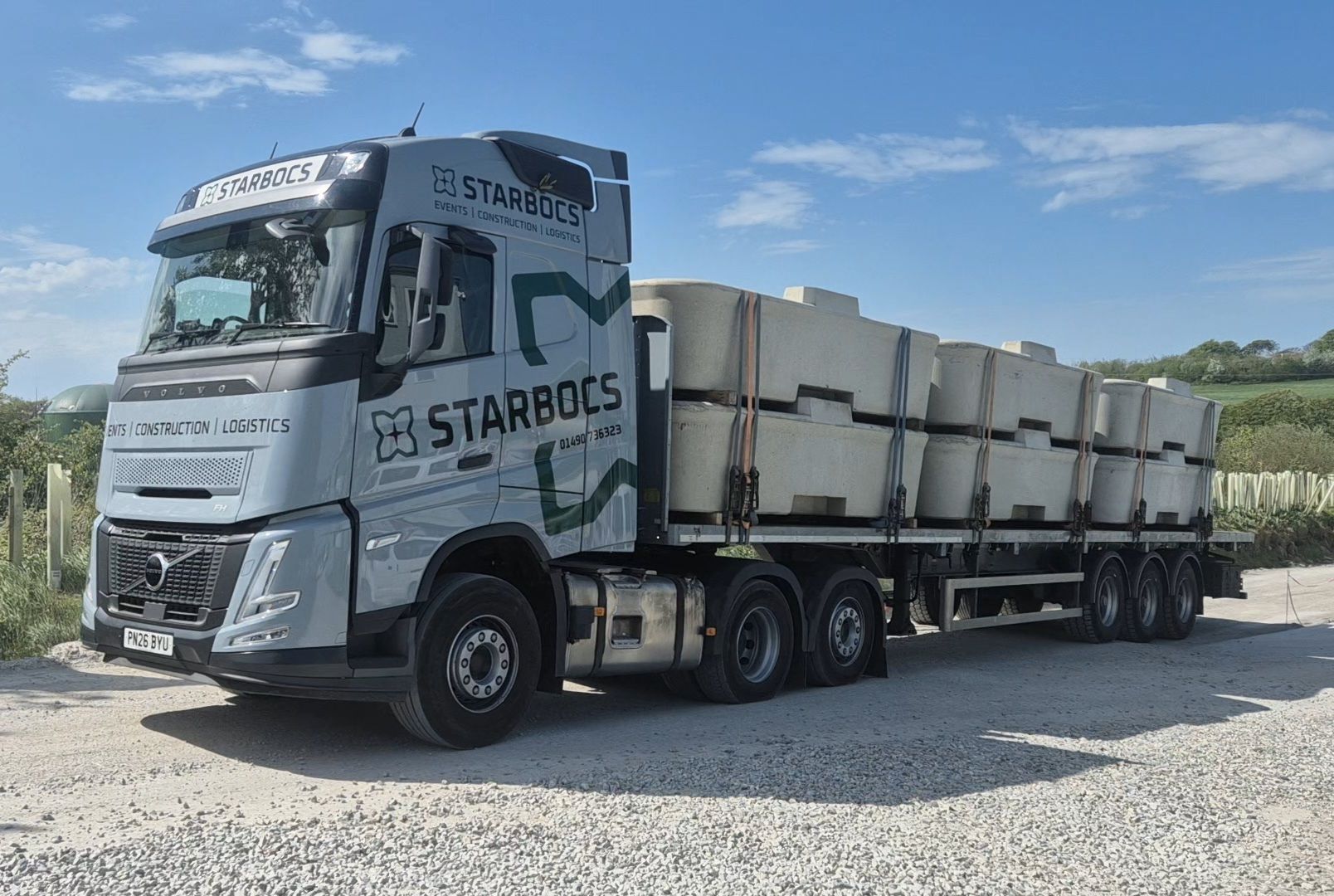

Precast concrete drinking troughs from a 30 Gallon Inline 'Cube' to the 500 Gallon flagship (3,930 × 1,285 × 800 mm / 12'11"×4'3"×2'7", 2,340 kg / 5,160 lb), cast in C40/50 to BS 8500-1:2023 with integrated pipe void to base. Drinking-trough designs for dairy cattle, beef herds and youngstock; catalogue troughs often in stock, bespoke sizes 2–3 weeks. Recently delivered: Holsworthy to Shropshire, Devon dairies.
Eight sizes, 30 to 500 Gallon, plus single and double cubicle end-wall troughs. Integrated pipe void to the base, concrete lids, large drain holes, rubber bungs and either XtraFlow or brass valves to fit.
- · 500 Gal flagship
- · 8 sizes + cubicle
- · Pipe void to base
- · Concrete lids
- · XtraFlow / brass valve
- · 2–3 week lead
Specification
Sizes, capacities and weights.

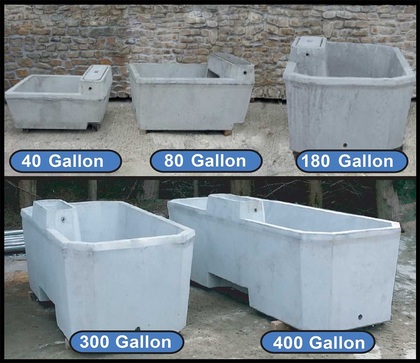

Eight sizes from 30 Gallon to 500 Gallon, plus single and double cubicle end-wall troughs that finish a row of cubicles with an integrated drinker.
| Type | Size (L×W×H) | Weight | Typical use |
|---|---|---|---|
| 500 Gallon | 3930 × 1285 × 800mm (12ft11in × 4ft3in × 2ft7in) | 2,340 kg (5,160 lb) | Largest flagship trough — high-yield groups, robotic herds |
| 400 Gallon | 3000 × 1250 × 800mm (9ft10in × 4ft1in × 2ft7in) | 1,873 kg (4,130 lb) | Main parlour cross-overs, large dairy groups |
| 300 Gallon | 2450 × 1250 × 800mm (8ft0in × 4ft1in × 2ft7in) | 1,600 kg (3,530 lb) | Cubicle row dividers, two-sided drink |
| 180 Gallon | 2400 × 800 × 420mm (7ft10in × 2ft7in × 1ft5in) | 600 kg (1,320 lb) | Long, low trough for field and yard runs |
| 100 Gallon | 2200 × 1140 × 700mm (7ft3in × 3ft9in × 2ft4in) | 1,250 kg (2,760 lb) | Mid-size cubicle service |
| 80 Gallon | 1500 × 820 × 600mm (4ft11in × 2ft8in × 2ft0in) | 635 kg (1,400 lb) | Calf pens, smaller groups |
| 40 Gallon | 1220 × 800 × 420mm (4ft0in × 2ft7in × 1ft5in) | 398 kg (880 lb) | Field troughs, sheep and youngstock |
| 30 Gallon Inline 'Cube' | 890 × 800 × 600mm (2ft11in × 2ft7in × 2ft0in) | 598 kg (1,320 lb) | End-stop in line with feed troughs to increase water availability |

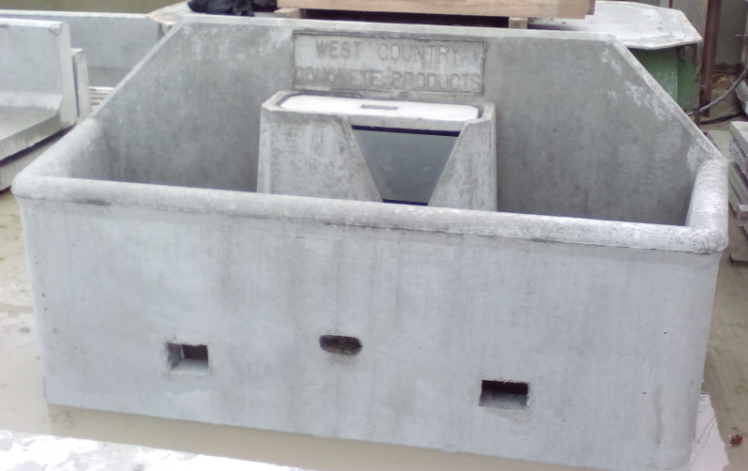

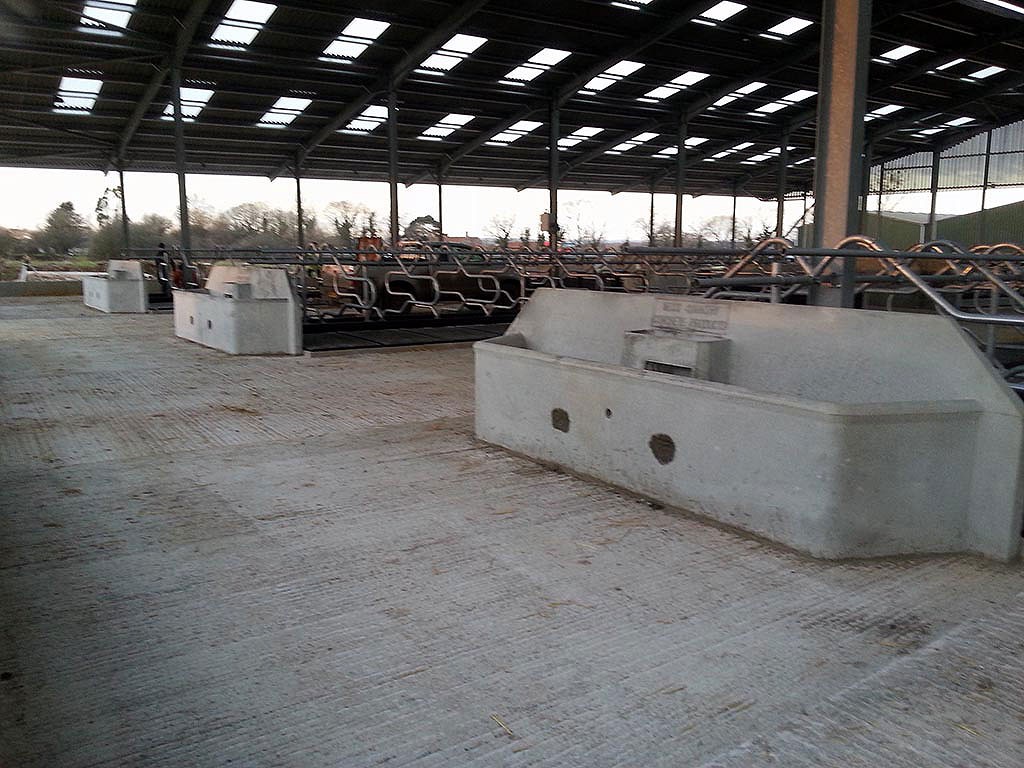

| Single Cubicle End-Wall | 2420 × 785 × 800mm (7ft11in × 2ft7in × 2ft7in) | 1,440 kg (3,180 lb) | Finishes a single row of cubicles with integrated drinker |
| Double Cubicle End-Wall | 4400 × 785 × 800mm (14ft5in × 2ft7in × 2ft7in) | 2,250 kg (4,960 lb) | Finishes a double row of cubicles with integrated drinker |
The range
The full water-trough range.
Built-in features
Cast for the long haul.
Every WCCP drinking trough ships with the service-space, valve and drain detailing already cast in.
- ·Integrated service space and pipe void through to the base — extra protection from elements and livestock
- ·Supplied with concrete lids
- ·Large drain holes
- ·Rubber bungs
- ·Universal XtraFlow valve, or brass high/low pressure valves to fit
- ·The 'Cube' Inline trough designed to fit in line with the standard and youngstock feed troughs as an end-stop and increase water availability
Where they go
Common applications.
- ·Cubicle-housed dairy parlour cross-overs
- ·Robotic-milking herd pre/post-robot drink stations
- ·Outdoor cattle handling yards and crushes
- ·Dispersed wintering pads
- ·Beef finishing units and youngstock pens
- ·Sheep handling races and lambing yards
- ·Field troughs for grazed paddocks
Configure your trough run
Send herd size and shed layout — we will quote inside 24 hours.
Related products
Often ordered alongside.
Common questions
What people ask about drinking troughs.
Five questions we answer most weeks. If yours is not here, ring the yard.
Which size do I need? +
AHDB recommends 100mm (4in) of trough perimeter per cow on a free-flow system. The 500 Gallon flagship at 3930×1285×800mm (12ft11in×4ft3in×2ft7in) and 2,340kg (5,160 lb) is the biggest single drink station we offer; the 400 and 300 Gallon work for most parlour cross-overs. Smaller 80 and 40 Gallon units suit calf pens and field watering.
What is the 30 Gallon Inline 'Cube' for? +
The 'Cube' (750 × 890 × 800mm / 2ft6in × 2ft11in × 2ft7in, 597kg / 1,320 lb) is designed to fit in line with the standard and youngstock feed troughs as an end-stop. It increases water availability at the feed face without adding a separate trough run — a neat trick for compact sheds.
How are they installed and plumbed? +
All troughs include an integrated service space and pipe void running through to the base — extra protection for the plumbing from livestock and the elements. Each unit ships with concrete lids, a large drain hole and rubber bung, and either our universal XtraFlow valve or a brass high/low-pressure valve to fit your supply.
Frost protection? +
The pipe void through to the base is the first line of defence — supply pipes are sheltered from livestock and from wind chill. Add trace heating or an immersion in the void for exposed sites. Drain bungs let you empty the trough quickly when the forecast is sub-zero.
Lead time? +
Catalogue troughs ship in 2 to 3 weeks. Stock often available — ring the yard for current availability.
Spec sheets
Download the technical data.
Every drinking trough in the range — pick the size you're spec'ing and download the PDF.
How would you like it?
Supply-only or fitted — Drinking Troughs
Supply only
Per-unit / per-metre supply
Lead time: 1–2 weeks (stock often available)
- Drinking trough (40 Gal to 500 Gal) with integrated pipe void
- Concrete lid, large drain hole and rubber bung
- XtraFlow universal or brass high/low pressure valve
- Delivery on our HIAB to your shed
- Plumbing in and pipe runs to the void
- Trace heating or insulation jacket (exposed sites)
- On-site setting and bedding screed
Stock units often despatch within a week. Ring the yard for current availability and a quote tailored to your herd size.
