Interlocking Blocks.
Reusable precast interlocking concrete blocks for site walling, push walls, storage bays and crash barriers. Cast in C40/50 to BS EN 14992 with paired tongue-and-groove cast-in lifting points. Stack to 4–5 high without bonding mortar. Lead time 1–4 weeks; standard 1.6m × 0.8m × 0.8m (5'3" × 2'7" × 2'7") and bespoke.
Reusable site walling. No mortar, no waste.
How heavy is a precast interlocking block?
How heavy is a precast interlocking block? The WCCP standard 1600 × 800 × 800 mm (5'3"×2'7"×2'7") "double" weighs 1,485 kg (3,275 lb) cast in C40/50. Half-height and half-length variants run roughly half that. Lifted with a HIAB or telehandler — no mortar, fully reusable.
Stackable Beton-style blocks. Standard 1600 × 800 × 800mm (5'3" × 2'7" × 2'7") doubles at 1,485kg (3,275 lb) with twin-lug top and recessed base. Stack them like Lego for instant walls, storage bays or push walls.
- · 1600×800×800mm (5'3"×2'7"×2'7")
- · 1,485 kg (3,275 lb) standard
- · Twin-lug interlock
- · Up to 4 courses
- · No mortar needed
- · 2–4 week lead
Specification
Variants, sizes and weights.
Catalogue range covers full doubles, halves, top-of-wall, bottom-of-stack and levelling courses. All Beton-pattern compatible.
| Type | Size (L×W×H) | Weight | Interlock | Typical use |
|---|---|---|---|---|
| Standard double | 1600 × 800 × 800mm (5'3" × 2'7" × 2'7") | 1,485 kg (3,275 lb) | Twin lug + recess | Standard storage bays, push walls |
| Standard single | 800 × 800 × 800mm (2'7" × 2'7" × 2'7") | 745 kg (1,643 lb) | Single lug + recess | Half-block infill, corners |
| Bottom (no lug) | 1600 × 800 × 800mm (5'3" × 2'7" × 2'7") | 1,485 kg (3,275 lb) | Recess only (top course) | Top of finished wall |
| Top (no recess) | 1600 × 800 × 800mm (5'3" × 2'7" × 2'7") | 1,485 kg (3,275 lb) | Lugs only (base course) | Bottom of stack |
| Half-height | 1600 × 800 × 400mm (5'3" × 2'7" × 1'4") | 745 kg (1,643 lb) | Twin lug + recess | Stepping down, course adjustment |
| Quarter-height | 1600 × 800 × 200mm (5'3" × 2'7" × 8in) | 370 kg (816 lb) | Twin lug + recess | Final levelling course |

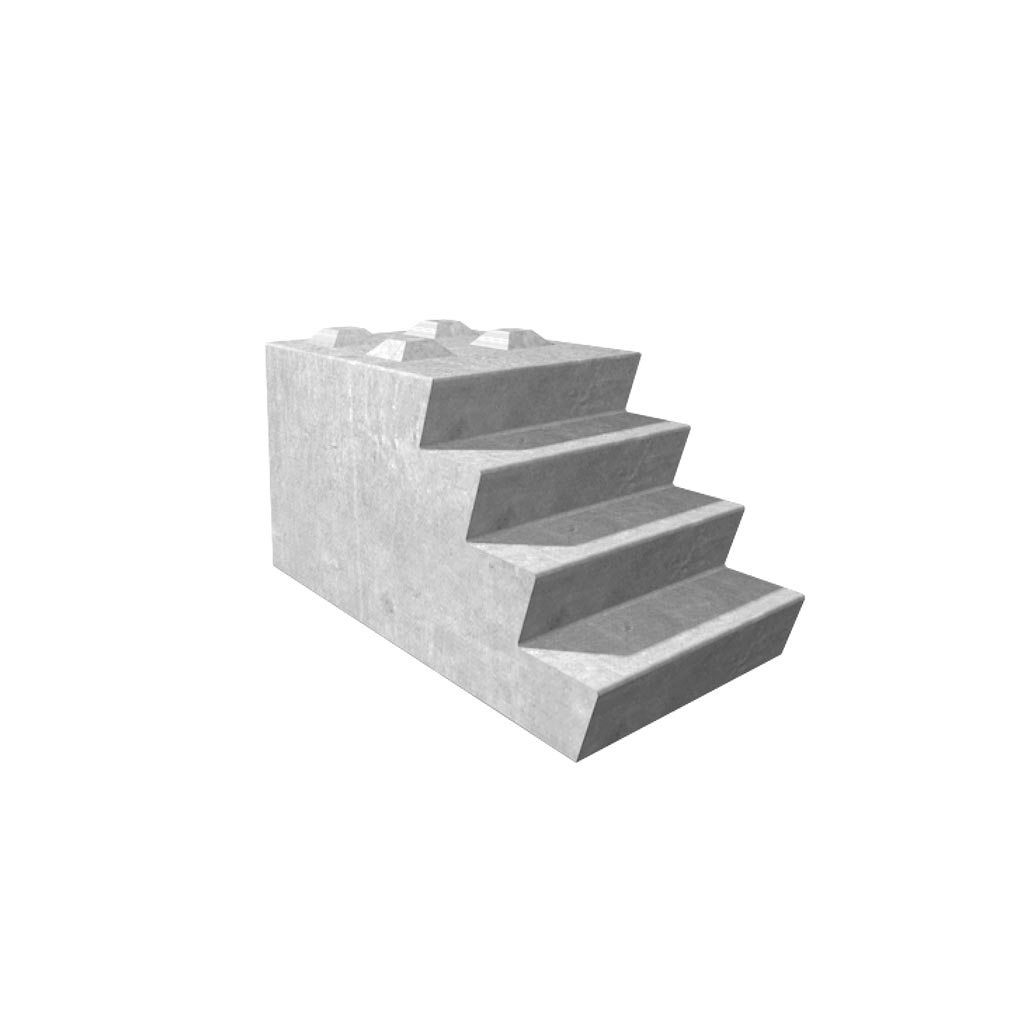

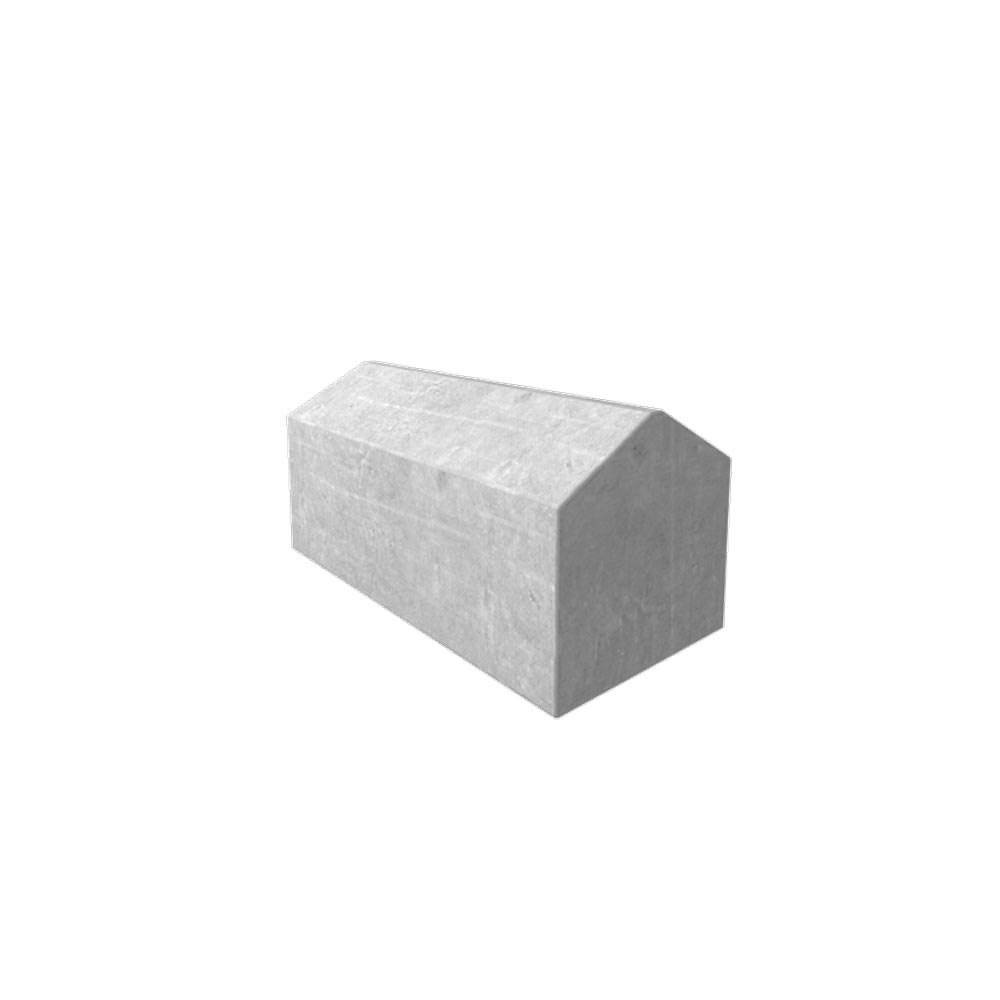

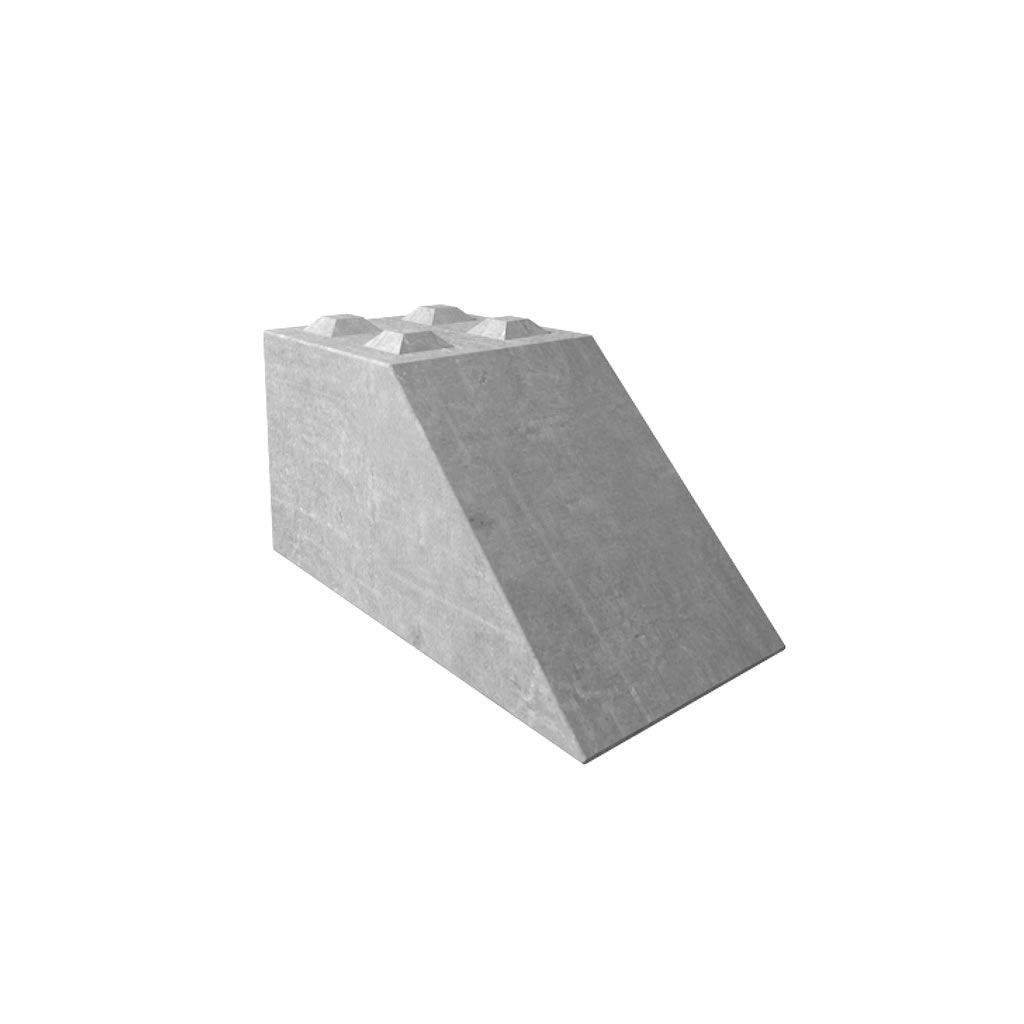

Variants
Block variants.
Where they go
Common applications.
From a temporary boundary on a building site to a permanent waste-transfer push wall — the blocks come, the wall goes up, the wall comes down again if you need it to.
- ·Instant boundary walls and security screens
- ·Silage clamp side walls (stack to suit height)
- ·Bulk-aggregate, grain and biomass storage bays
- ·Push walls for waste-transfer and recycling
- ·Temporary site separation and counter-terror barriers
- ·Flood-defence barriers and bund walls
- ·Stack-and-go fertiliser, salt and gritter stores
Standards & references
Cast to current code.
- BS EN 13369
- Common rules for precast concrete — factory production control.
- BS 8500-1:2023
- Concrete spec — C40/50 designed mix.
- BS EN 1992 (Eurocode 2)
- Concrete structural design — overturning checks for stack heights.
- BS 5502-22:2003
- Agricultural buildings — silage and bulk-storage loadings.
- Beton-block pattern
- Twin-lug pitch compatible with most European interlocking-block manufacturers.
Configure your wall
Send length and height — we will quote inside 24 hours.
Related products
Often ordered alongside.
Common questions
What people ask about interlocking blocks.
Five questions we answer most weeks. If yours is not here, ring the yard.
How tall can I stack them? +
A free-standing wall of standard 1600×800×800mm (5'3"×2'7"×2'7") blocks is good to 4 courses (3.2m / 10'6") in most applications without a tieback. Higher stacks need engineering — we can supply a tied-back design or a wider footprint with two-row blocks below the third course.
How heavy are they? +
The standard double block at 1600 × 800 × 800mm (5'3" × 2'7" × 2'7") is 1,485kg (3,275 lb). A 16-tonne teleporter handles them comfortably. Single 800 × 800 × 800 (2'7" × 2'7" × 2'7") blocks at 745kg (1,643 lb) lift on a smaller machine.
Do they need a foundation? +
Just a flat compacted MOT Type 1 base, 200mm (8in) thick. The blocks are heavy enough that overturning is not the issue at typical wall heights — it is the bearing. Soft ground gets a wider base.
Are they Beton-style? +
Yes — twin-lug pattern compatible with the common European interlocking block. We can interlock with most other manufacturers' blocks where the lug pitch matches; ring before mixing.
Lead time? +
Catalogue blocks ship in 2 to 4 weeks. Stock often available for the standard double — ring the yard for current availability. Painted blocks (a popular ask for boundary walls) run 4 to 6 weeks.
Spec sheets
Download the technical data.
Rapid-Fit retaining block system technical guide and the standalone block reference.
How would you like it?
Supply-only or fitted — Interlocking Blocks
Supply only
Per-unit / per-metre supply
Lead time: from stock — 1 week typical
- Cast 1600×800×800 (5'3"×2'7"×2'7") double block (1,485 kg / 3,275 lb)
- Twin-lug Beton-pattern interlock
- BS EN 13369 documentation
- Delivery on our HIAB to your site
- On-site teleporter or crane to set blocks
- Compacted MOT Type 1 base preparation
. Half-height, quarter-height, top/bottom-of-stack and painted variants priced individually. Pallet quantities and trade rates available — ring the yard.
Ready to spec it?
Send wall length and stack height. Quote and lead-time same day.
