Agricultural · dairy · beef
Cattle Cubicles.
Sized to the breed. Built to outlive the shed.
A UK Holstein-Friesian cattle cubicle measures 2.4m × 1.2m (7ft10in × 3ft11in) bed, with a 1.15m (3ft9in) neck rail and a 1.7m (5ft7in) brisket board, sized to AHDB Dairy 2024 dimensions. WCCP cast cubicles in C40/50 concrete to BS 5502-22, with fixed and portable variants for dairy, beef and youngstock. Catalogue lead time 2-3 weeks.
A UK Holstein-Friesian cattle cubicle measures 2.4 m (7ft10in) long by 1.2 m (3ft11in) wide, with the neck rail at 1.15 m (3ft9in) and the brisket board 1.7 m (5ft7in) from the kerb (per AHDB Dairy 2024 guidance). WCCP precast cubicle divisions are cast in C40/50 concrete and weigh approximately 320 kg (706 lb) each.
Fixed and portable precast cubicle systems sized to AHDB 2024 dimensions. Holstein, Jersey, Friesian, beef-suckler and youngstock variants. We cast, deliver and install UK-wide — and into Europe on planned runs.
- · AHDB 2024 sized
- · 2.4m × 1.2m (7ft10in × 3ft11in) bed
- · Neck rail 1.15m (3ft9in)
- · Brisket 1.7m (5ft7in)
- · Fixed + portable
- · 2–3 week lead
Specification
Variants, sizing and weights.
AHDB Dairy 2024 dimensions for the standard catalogue. Bespoke sizes — wider beds, adjusted neck-rail heights, dished kerb profiles — quoted on application.
| Variant | Bed size | Style | Typical use |
|---|---|---|---|
| 7’6" × 4’ Cow Cubicle | 7'6" × 4'0" (2286 × 1219mm) | Front-leg mushroom | Larger-frame Holstein and modern dairy herds |
| 7’6" × 3’9" Cow Cubicle | 7'6" × 3'9" (2286 × 1143mm) | Front-leg mushroom | Standard dairy herd |

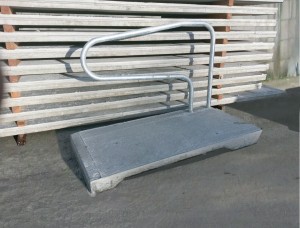

| 7’ × 3’9" Young Stock Cubicle | 7'0" × 3'9" (2134 × 1143mm) | Sized for young and small stock | In-calf heifers and rearing groups |
| 6’6" × 3’3" Young Stock Cubicle | 6'6" × 3'3" (1981 × 991mm) | Sized for young and small stock | Smaller youngstock — train them young |

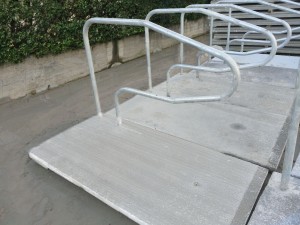

| Portable Blank Cow Cubicle Bed | To suit your cubicle make | Free-standing — accepts most cubicle hoops | Re-roofed barns, retro-fits, tenanted lets |
| Precast heelstones (sand beds) | Standard or to spec | Eliminates on-site shutter forming | Sand bed and loose-bedding cubicle formation |
All cubicle metalwork is available direct from us — if you are forming your own beds with our heelstone coping we can supply all the appropriate accessories to complete the job. For longer beds, position the cubicle further away from the back wall as this part is only lunging space.
Size cubicles on the heaviest 15% of the herd, not the average — AHDB Dairy 2024 recommendation. We will size them with you against your milk records before you order.
The range
The full cubicle range.
Where they go
Common applications.
From a 60-cow Devon dairy retrofit to a 400-cow robot shed in Somerset, we cast the same cubicle system — sized to your herd, delivered to your programme.
- · Loose-housed dairy parlours retro-fitted with cubicles
- · New-build robotic milking sheds — DeLaval, Lely
- · Beef suckler housing on grant-funded steel-frame buildings
- · Heifer rearing units with grouped age bands
- · Tenanted units needing portable, removable cubicle rows
- · Calving and dry-cow accommodation with wider beds
- · Conversions of straw-yard buildings to cubicle bedding
Standards & references
Cast and sized to current best practice.
- AHDB Dairy 2024
- Cubicle dimensions guide — bed size, neck rail, brisket board sized to herd liveweight distribution.
- BS 5502-22:2003
- Buildings and structures for agriculture — cattle housing. Loadings and detailing.
- BS 8500-1:2023
- Concrete specification — C40/50 mix designed for the dairy environment.
- BS EN 13369
- Common rules for precast concrete products — factory production control.
Configure your cubicle row
Tell us herd size, breed and shed dimensions — we will quote inside 24 hours.
Related products
Often ordered alongside.
Common questions
What people ask about cubicles.
Five questions we answer most weeks. If yours is not here, ring the yard.
What sizing do you follow for the cubicles? +
We work to AHDB Dairy 2024 dimensions: 2.4m × 1.2m (7ft10in × 3ft11in) bed for the mature Holstein, neck rail at 1.15m (3ft9in), brisket board at 1.7m (5ft7in). Jersey, Friesian and beef variants follow the same logic, scaled by liveweight. We size on the heaviest 15% of the herd, not the average — that is the AHDB recommendation and it is what stops cubicle-rejection lameness.
Fixed or portable — which do I want? +
Fixed cubicles bolt to a cast-in upstand or floor pocket and are the standard for new builds. Portable cantilever cubicles sit on a base rail and can be lifted out — they suit reroofed sheds, tenanted units and farms that want to flex bed numbers between groups.
How long does install take? +
A two-man crew with a HIAB sets a 60-cubicle row in a day on a flat slab. We deliver to programme, supply the install drawing and the bedding-mortar spec. We can also project-manage the install if you want a turn-key job — talk to the yard.
Do they suit a robot herd? +
Yes — robot herds need the cubicle right because the cow chooses when to lie. We size to the higher-yielding 15%, set the neck rail forward, and use a soft brisket board so cows rise easily and head to the robot. Lely and DeLaval both publish cow-flow guides we work to.
What is the lead time? +
Catalogue cubicle divisions ship in 2 to 3 weeks. Bespoke heights or finishes run 4 to 6 weeks. Spring and autumn are our busy seasons — get the order in early if your shed is going up to a programme.
How would you like it?
Supply-only or fitted — Cattle Cubicles
Supply only
Per-unit / per-metre supply
Lead time: 2–3 weeks
- Cast cubicle divisions to AHDB 2024 sizing
- Bedding-mortar spec & install drawing
- Delivery on our HIAB to your slab
- Full BS 5502-22 / BS 8500-1 documentation
- Slab preparation and cast-in upstands
- On-site setting / fixing labour
Fitted (supply + install)
Supply + install crew
Lead time: 4–6 weeks (incl. site slot)
- Everything in supply only
- Two-man install crew with HIAB
- Survey + setting-out service
- Concrete slab and base works
- Mains electrical or scrape-system fit-out
. Smaller batches and bespoke bed sizes priced individually — send the shed dimensions and we'll come back within a working day.
Ready to spec it?
Send us herd size, breed and a sketch of the shed. Quote and lead-time same day.
