- Made in North Devon since 1973
- BSI Kitemark ready-mixed concrete
- Manufactured to BS EN 14992
- UK-wide & European delivery
Agricultural · slurry · drainage
Slurry Channels, Slats & Covers.
Six-month capacity. Cast in a day.
What size slurry channel do I need?
WCCP precast slurry channels come in three sizes — standard (1180×1100mm / 3'10"×3'7"), midi (875×780mm / 2'10"×2'7") and mini (480×370mm / 1'7"×1'3") — plus 8' diagonal slats. Manufactured to BS EN 14844 and BS 8500-1:2023, sulphate-resisting, 20-year design life. Catalogue lead time 2-3 weeks; matched slats and corner pieces cast on the same order.
What size slurry channel do I need? Size for at least six months' herd output (SIG / SSAFO 2018 expectation), with a 2% fall to the cross-channel and width sized to the slat span. Standard, midi and mini depths to BS EN 14844, cast in C40/50 sulphate-resisting concrete.
Cast-in-place slurry handling — channels, slats and covers, all from the same yard, all to the same standard. SSAFO 2018-compliant, cast in C40/50 sulphate-resisting concrete, geometry to BS EN 14844. Pairs with our V-Section Sand Channels range for mixed-bedding sheds.
- · SSAFO 2018 compliant
- · C40/50 SR mix
- · Standard / midi / mini
- · Slat or solid covers
- · BS EN 14844 geometry
- · 2–3 week lead
Specification
The full slurry handling family.
Three channel sizes, two slat options, matching solid lids — all dimensioned and weighed below. Heavy-duty slat upgrades for tractor traffic on application.
| Product | Dimensions (L×W×H) | Internal | Weight | Notes |
|---|---|---|---|---|

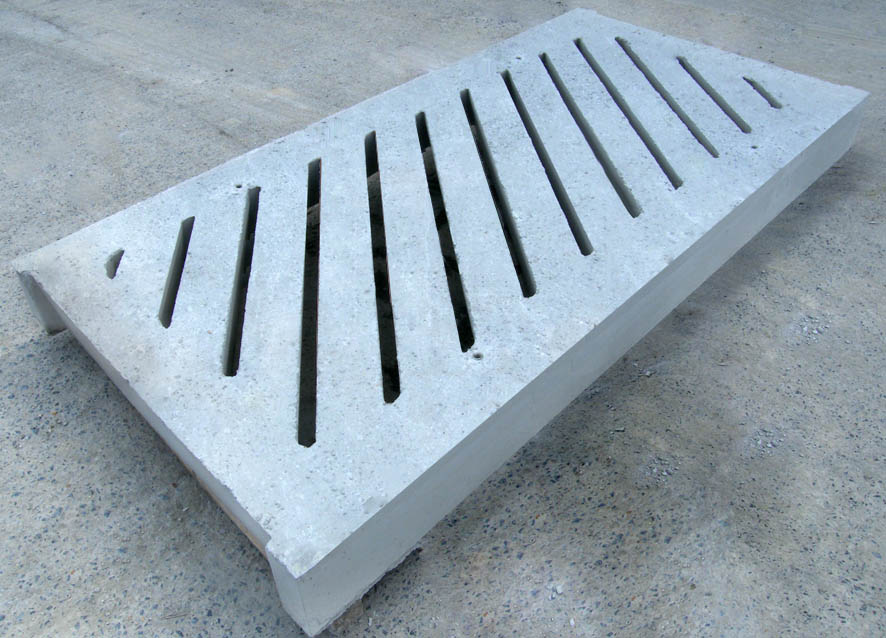

| 8' Diagonal Slats | 203 × 1220 × 2440 mm (8in × 4ft0in × 8ft0in) | — | 1000 kg (2,210 lb) | Fits standard slurry channels; heavy-duty option available |
| Standard Slurry Channels (shallow) | 1100 × 1180 × 2440 mm (3ft7in × 3ft10in × 8ft0in) | 1000 × 1000 mm (3ft3in × 3ft3in) | 1480 kg (3,260 lb) @ 600mm depth (2ft) | Fits diagonal slat above |
| Standard Slurry Channels (deep) | 1100 × 1180 × 2440 mm (3ft7in × 3ft10in × 8ft0in) | 1000 × 1000 mm (3ft3in × 3ft3in) | 2880 kg (6,350 lb) @ 1605mm (5ft3in) | — |
| Midi Channels | 780 × 875 × 2000 mm (2ft7in × 2ft10in × 6ft7in) | 700 × 700 mm (2ft4in × 2ft4in) | 940 kg (2,070 lb) | Solid & diagonal slat covers available |
| Midi Channel Covers | 125 × 875 × 2000 mm (5in × 2ft10in × 6ft7in) | — | Slat 486 kg (1,070 lb) / solid 525 kg (1,160 lb) @125mm (5in) | — |
| Mini Channels | 370 × 480 × 2000 mm (1ft3in × 1ft7in × 6ft7in) | 300 × 300 mm (1ft0in × 1ft0in) | 420 kg (930 lb) | Solid or diagonal slat lids |
| Mini Channel Covers | 475 × 2000 × 90 or 140 mm (1ft7in × 6ft7in × 4in or 6in) | — | Slat 180/280 kg (400/620 lb) · Solid 205/320 kg (450/710 lb) | — |
Cast-in lifting eyes on every unit; conformity documentation to BS EN 14844 available on request. Bespoke depths and lengths available — drawing in Friday, quote Monday.
Channel types
Channel types we cast.
Where they go
Common applications.
From a 60-cow Devon dairy retrofit to a 400-cow robot shed in Somerset, the same slurry channel family handles the flow — sized to the shed, delivered to programme.
- · Cubicle housing scrape-channel and reception pits
- · Collecting yards under herringbone parlours
- · Sand-bedded dairy housing paired with V-section channels
- · Beef finishing sheds with under-slat collection
- · Calf housing with mini channels for low flow rates
- · Retro-fit slurry channel runs into existing concrete slabs
- · SSAFO 2018 upgrade works on legacy slurry stores
Standards & references
Cast to current best practice.
- SSAFO 2018
- Silage, Slurry & Agricultural Fuel Oil Regulations — channel and storage requirements for England.
- BS EN 14844
- Precast concrete products — box culverts. Geometry, tolerances and conformity testing.
- BS 8500-1:2023
- Concrete specification — C40/50 sulphate-resisting mix designed for the slurry environment.
- BS EN 13369
- Common rules for precast concrete products — factory production control.
- AHDB Dairy
- Slat-gap recommendations for dairy and beef cattle — hoof safety and self-cleaning flow.
Configure your slurry channel run
Send the shed dimensions and channel depth — we will quote inside 24 hours.
Related products
Often ordered alongside.
Common questions
What people ask about slurry channels.
Five questions we answer most weeks. If yours is not here, ring the yard.
What's the difference between standard, midi and mini channels? +
Standard slurry channels (1100×1180mm / 3ft7in×3ft10in external, 1000×1000mm / 3ft3in×3ft3in internal) sit under cubicle housing where the full herd scrapes through them — that is the workhorse size. Midi channels (780×875mm / 2ft7in×2ft10in external, 700×700mm / 2ft4in×2ft4in internal) suit smaller groups, calf housing or yard runs where flow is lower. Mini channels (370×480mm / 1ft3in×1ft7in, 300×300mm / 1ft0in×1ft0in internal) are for tight detailing or very-low-flow areas. All three accept matching slat or solid covers from the same family, so you can mix sizes along a run if the layout demands it.
Can the slats take livestock weight? +
Yes. Our 8' diagonal slats are cast in C40/50 sulphate-resisting concrete to BS 8500-1:2023 and rated for cattle traffic — including the heavy-duty option for tractors and full-load loaders. The diagonal pattern self-cleans as cattle walk, the gaps are sized to AHDB recommendations to avoid hoof injury, and lifting eyes are pre-cast so they go in by HIAB without site cutting. We supply a heavy-duty variant if you want to drive a feeder wagon over them.
Are these compatible with sand-bedded systems? +
The standard slurry channel range is designed for slurry-only flow — sand will silt up the bottom corners. For sand-bedded dairy, pair this product with our V-Section Sand Channels (the V profile narrows at the base to keep sand moving on a 2% fall). The slats interchange between the two systems, so you can run a mixed shed with sand under the lying area and standard slurry under the loafing area off the same slat stock.
Lead time? +
Standard channels and slats from catalogue ship in 2 to 3 weeks from order confirmation. Heavy-duty slat variants and mixed-size runs need 3 to 4 weeks. Spring and autumn are our busiest seasons — get the order in early if your shed is going up to a programme. We deliver on our own HIAB fleet across Devon, Cornwall, Somerset and Dorset same-week, and on planned runs to the rest of the UK in 2 to 3 weeks.
Do you supply the slats and channels as a complete system? +
Yes — that is the whole point of casting them at one yard. You order the slurry channels, the matching slats (diagonal or solid) and the lifting eyes as a single delivery, with conformity documentation to BS EN 14844 culvert geometry available on request. We will issue the install drawing showing chamber depth, fall, and how the slats sit on the channel rebate. We do not fit slurry channels — that is a wet trade for a groundworker — but we will talk your installer through the detail.
Spec sheets
Download the technical data.
Slurry-channel sections, slatted lids and the slotted drainage channel — every PDF you'll need to spec a run.
How would you like it?
Supply-only or fitted — Slurry Channels
Supply only
Per-unit / per-metre supply
Lead time: 2–3 weeks
- Cast-in-place delivery on our HIAB
- Lifting eyes pre-cast on every unit
- Conformity documentation to BS EN 14844 available on request
- Compatible with WCCP V-Section sand channels
- Slab and chamber excavation works
- On-site setting and bedding-mortar
. Heavy-duty slat upgrades and bespoke depths quoted individually — send the shed dimensions and we'll come back within a working day.
Ready to spec it?
Send us shed dimensions, channel depth and the slat type you want. Quote and lead-time same day.
