Lintels.
Cast for the opening. Matched to the stone.
Precast concrete lintels to BS 5977 — prestressed, reinforced, boot and bespoke heritage profiles. Bullnose, splay and moulded finishes for listed-building rebuilds and conservation work. C40/50 concrete to BS 8500-1:2023, designed to BS EN 1992 (Eurocode 2). Catalogue lead time 2–3 weeks.
A heritage bullnose lintel cast to BS 5977-1 with a matched stone-effect finish satisfies the listed-building consent for like-for-like replacement on a Grade II rebuild — designed to BS EN 1992, sized to the opening and the load take-down.
Standard prestressed for the housebuilder. Bespoke heritage and architectural profiles for the conservation specialist. Cast at Holsworthy, delivered UK-wide.
- · BS 5977
- · Up to 6m (19'8") span
- · Heritage profiles
- · Boot + standard
- · Manufactured to harmonised BS EN standards
- · 2–6 week lead
📷 Photo needed
Hero shot: bullnose heritage lintel on a heritage cottage rebuild in Devon, set above a sash window opening with stone surround
Specification
Profiles, sizes and uses.
Six catalogue families covering domestic openings to listed-building heritage work. Bespoke moulds for matched conservation profiles cast on order — send the stonemason's drawing or a measured photo and we will match.
| Variant | Size / span | Standard / style | Typical use |
|---|---|---|---|
| Standard prestressed lintel | 100 × 65mm to 215 × 145mm (4in × 3in to 8in × 6in) × spans to 4m (13'1") | BS 5977-1 prestressed · 7-wire strand | Domestic openings, internal partitions |
| Reinforced architectural lintel | 215 × 100mm to 325 × 215mm (8in × 4in to 1'1" × 8in) × spans to 6m (19'8") | BS 5977-1 reinforced · B500B steel | Heritage windows, conservation rebuilds |
| Boot lintel (composite) | L-section · spans to 5m (16'5") | BS 5977-2 cavity wall · weather check | Cavity-wall openings with brick reveal |
| Bullnose moulded lintel | To architect's drawing · spans to 4m (13'1") | Cast-stone effect · bullnose nosing | Period properties, listed-building work |
| Splay-stop architectural | To drawing · spans to 4m (13'1") | Splay end-stops · matched to opening | Georgian / Victorian sash windows |
| Bespoke heritage profile | To stonemason's drawing | Reinforced + cast-finish · matched stone | Listed buildings, conservation areas |
All lintels manufactured under factory production control to BS EN 13369. Mill certs and load tables — conformity documentation available on request.
For heritage and listed-building work we cast bespoke moulds in-house — send the stonemason's drawing or a measured photo and we will match bullnose, splay or moulded profile with a stone-effect finish.
The range
Lintels in service.
Where they go
Common applications.
From a 1.2m (3'11") prestressed lintel on a Devon new-build to a bespoke matched bullnose on a Grade II conservation rebuild in Cornwall, we cast and deliver to the same engineered standard — sized to the opening, finished to the spec.
- · Domestic and commercial window and door openings
- · Heritage and conservation rebuilds — listed buildings
- · Period property restoration and matching
- · Cavity-wall construction with weather-check boot lintels
- · Architectural-finish openings on premium housing
- · Self-build and bespoke architect-specified projects
- · Stable-block and agricultural-building openings
Standards & references
Cast to current code.
- BS 5977-1:1981
- Code of practice for design of lintels — sizing, loading and detailing.
- BS EN 845-2:2013
- Specification for ancillary components for masonry — lintels and bed joint reinforcement.
- BS 8500-1:2023
- Concrete specification — C40/50 mix designed for exposure class XC3.
- BS EN 1992 / Eurocode 2
- Design of concrete structures — reinforcement detailing and durability.
- BS EN 10138-3
- Prestressing steels — 7-wire strand for prestressed lintels.
- BS EN 13369
- Common rules for precast concrete products — factory production control.
Configure your lintel order
Send us the opening sizes, load take-down and finish — we will quote inside 24 hours.
Related products
Often ordered alongside.
Common questions
What people ask about lintels.
Five questions we answer most weeks. If yours is not here, ring the yard.
What standard do your lintels meet? +
BS 5977-1:1981 — code of practice for design of lintels — and BS EN 845-2:2013 (specification for ancillary components for masonry — lintels). Cast in C40/50 concrete to BS 8500-1:2023, with B500B reinforcement designed to BS EN 1992 (Eurocode 2) or 7-wire prestressing strand to BS EN 10138-3 for prestressed types. Manufactured under factory production control to BS EN 13369.
Heritage and listed-building work — can you match existing? +
Yes — heritage and listed-building lintels are a core part of what we cast at Holsworthy. Send us the stonemason's drawing or a photo with measurements and we will match the bullnose, splay or moulded profile in cast concrete with a stone-effect finish. We work with conservation officers across the South West regularly. Pigments, exposed-aggregate finishes and bespoke moulds all available.
Boot lintels for cavity walls — how do they work? +
A boot lintel is an L-section composite cast that supports the inner blockwork on the horizontal leg, while the vertical leg forms the brick reveal of the cavity wall and integrates with the DPC tray. We supply the boot to BS 5977-2 with the weather-check detail cast in. Typical use is on cavity-wall openings up to 5m (16'5") where steel lintels would be too deep or where a clean cast finish is wanted.
How are they sized? +
For domestic openings up to 1.8m (5'11") our standard 100 × 65mm (4in × 3in) prestressed lintel takes most loads. For larger openings, masonry above and openings carrying steelwork, send us the load take-down and we will size against BS 5977-1. The catalogue covers 100mm (4in) wide for 100mm (4in) cavities up to 215mm (8in) wide for solid-wall heritage work — bespoke widths cast to drawing.
What is the lead time? +
Catalogue prestressed and reinforced lintels ship in 2 to 3 weeks. Heritage and bespoke architectural profiles run 4 to 6 weeks given the bespoke mould. Listed-building rebuilds with multiple matched lintels typically run 6 to 8 weeks — engage us at the planning consent stage.
How would you like it?
Supply-only or fitted — Lintels
Supply only
Per-unit / per-metre supply
Lead time: 2–6 weeks
- BS 5977 lintels to specified profile
- Bespoke heritage moulds where specified
- Mill certs and load tables (conformity documentation available on request)

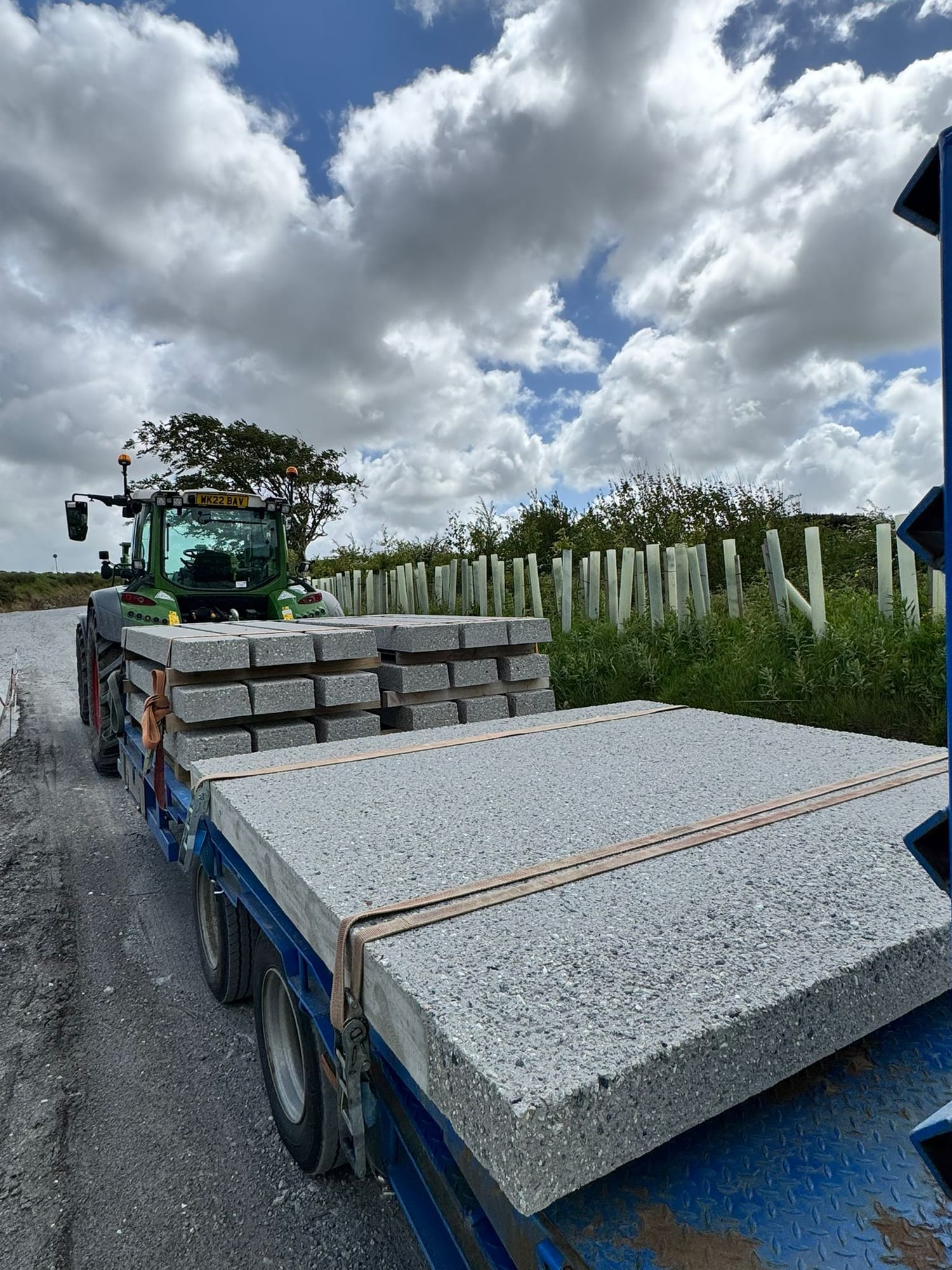

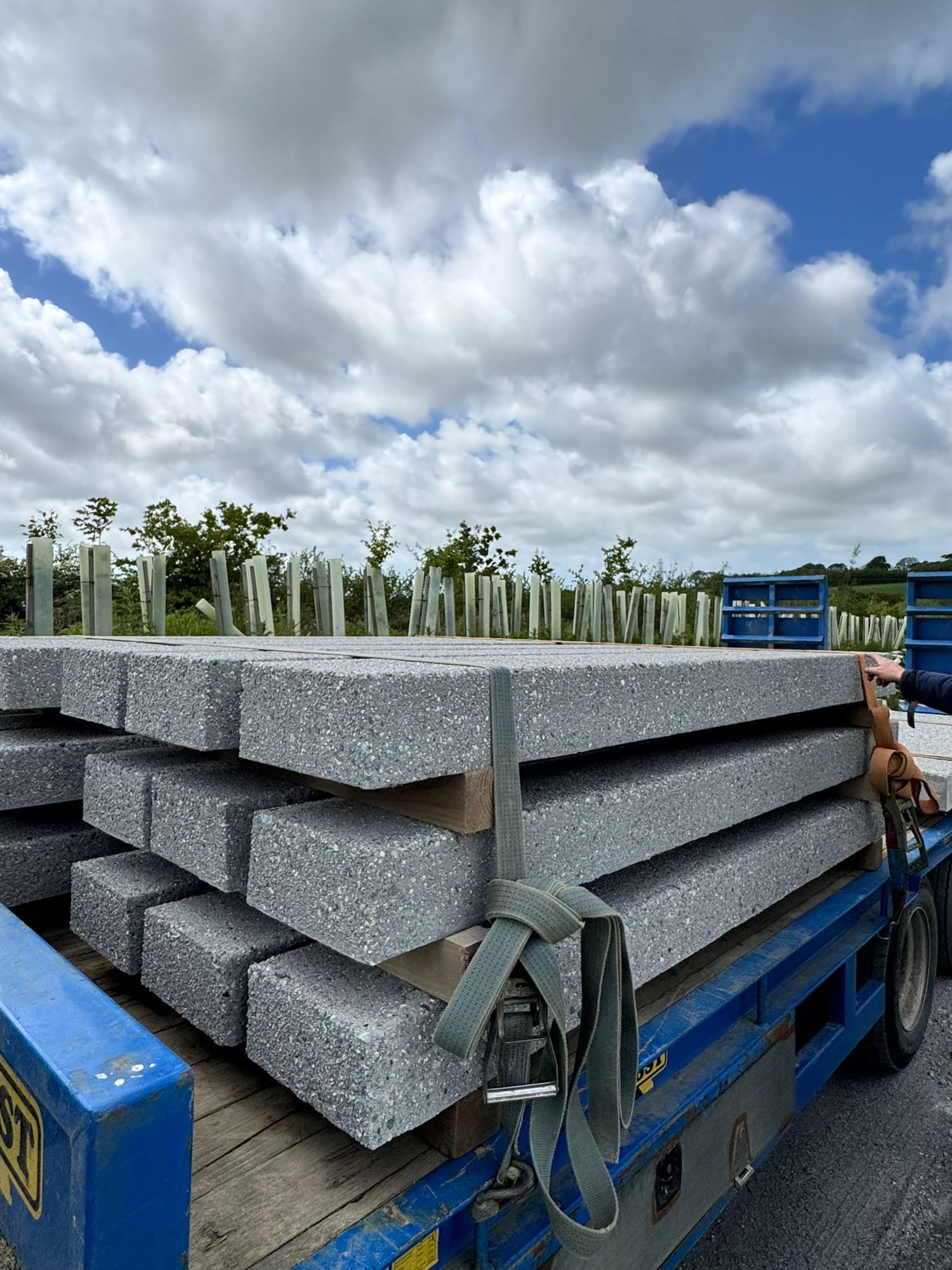

- Delivery to site by HIAB or flat-bed
- Setting and bedding into masonry
- Wallwork above and below
Fitted (supply + install)
Supply + install crew
Lead time: 6–10 weeks (incl. site slot)
- Everything in supply only
- Bedding into existing masonry
- Conservation-officer liaison if required
- Surrounding structural and weatherproofing works
- Scaffolding and access
. Bespoke heritage profiles, listed-building rebuilds and architect-specified runs priced individually — send the drawing or measured photo and we'll come back within a working day.
Ready to spec it?
Send us opening sizes, load take-down and finish requirement. Quote and lead-time same day.
